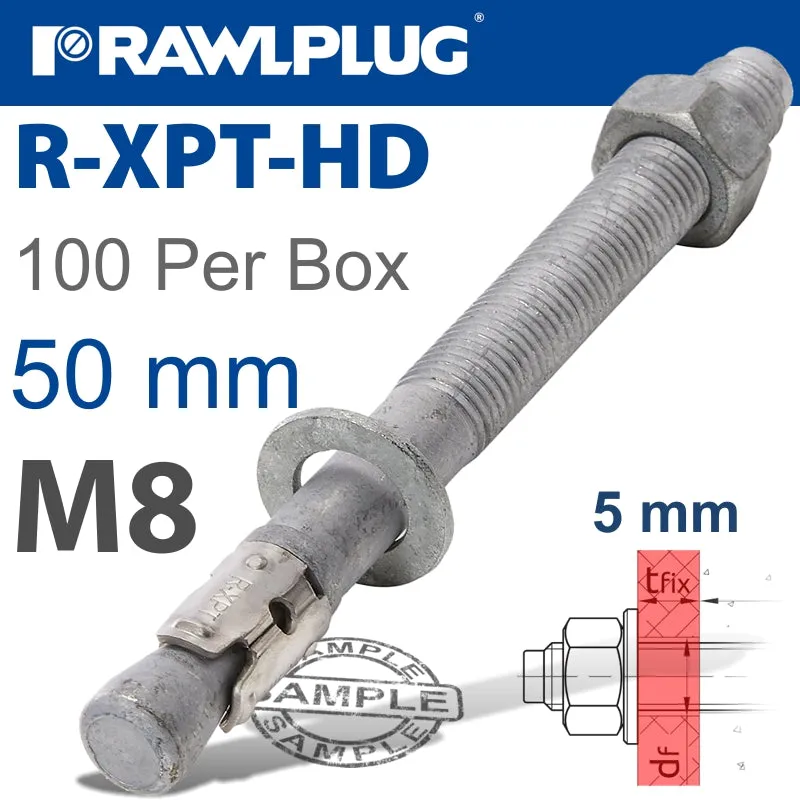

Holds materials up to 5 mm thick

Cat No: R-XPT-HD-08050/5

Size: M8 x 50 mm anchor

Qty: 100 | Box

Hot Dip Galvanized throughbolt for non-cracked concrete.

Features and benefits

• Increased corrosion resistance due to hot dip zinc external protection layer
• R-XPT is suitable for reduced embedment to avoid contact with reinforcement
• Embedment depth markings help to ensure precise installation of the anchor
• Design of R-XPTII allows drilling and installing directly through the fixture and helps to reduce installation time
• High quality with cost effectiveness
• Cold formed body ensures consistent dimensional accuracy

Base material

• Non-cracked concrete C20/25-C50/60
• Unreinforced concrete
• Reinforced concrete

For use also with

• Natural Stone

Applications

• Cladding restraint
• Curtain wall
• Balustrading
• Barriers
• Handrails
• Racking
• Structural steel
• Bollards

Description	Spec
Cat No:	R-XPT-HD-08050/5
Thread Size	M8
Hole Diameter in substrate	8 mm
Anchor Diameter	8 mm
Anchor Length	50 mm
Thread Protruding	- mm
Fixture Max Thickness	5 mm
Hole Diameter in fixture	9 mm
Wrench Size	13 mm
Quantity per box	100
Barcode	5906675277875



Installation Specifications

Size		M6	M8	M10	M12	M16	M20	M24
Thread diameter	[mm]	6	8	10	12	16	20	24
Hole diameter in substrate	[mm]	6	8	10	12	16	20	24
Installation torque	[Nm]	5	15	30	50	100	200	300
Wrench size	[mm]	10	13	17	19	24	30	36
STANDARD EMBEDMENT DEPTH
Min. hole depth in substrate	[mm]	55	60	65	85	105	125	140
Installation depth	[mm]	50	55	59	80	100	119	135
Min. substrate thickness	[mm]	84	100	100	136	170	198	224
Min. spacing	[mm]	45	50	55	75	90	140	180
Min. edge distance	[mm]	50	40	50	65	80	100	200
REDUCED EMBEDMENT DEPTH
Min. hole depth in substrate	[mm]	35	45	55	65	85	105	125
Installation depth	[mm]	30	40	49	60	80	99	120
Min. substrate thickness	[mm]	80	100	100	100	130	158	194
Min. spacing	[mm]	40	45	55	100	100	125	160
Min. edge distance	[mm]	45	40	65	100	100	125	160

---
